NANIWA'S Unique Technology

  1. The Setsugo System
  2. Blow Chip-less (Candle-less) Technology for shell core machines
  3. Complete Package System of Core Making


In 1970 NANIWA firstly in the world developed and patented under the name of Setsugo System a unique method to produce one seamlessly jointed core from previously made cores which were inserted in one core box and made into one core by another blowing. This technology became possible due to close collaboration of tool designers and machine designers.
Later this method was successfully applied to engine crank case + cylinder bore core packages for V-6, in-line 4 and in-line 6 engine blocks.
Before this method was invented, crank case with bore cores must be made separately and then assembled into one package either by bonding or by mechanical clamping ( by bolts). The traditional method has inevitably following disadvantages: dimensional accuracy was not high and not stable, parting lines between each core elements caused fins or burrs on castings, gas defects often caused on castings by bonding material, not high productivity and so on.

Naniwa's The Setsugo System has following advantages:

- extremely high dimensional accuracy ( alignment, concentricity and center-to-center distance of cylinder bore cores) and its stability due to the fact that the cylinder bore cores are blown in geometrically accurate core-box cavities;

- it allows to minimize wall thickness between bores and crank case bearing partition, which eventually contributes to lightening engine, its higher performance and fuel saving;

- core package free from parting lines gives fin-free castings;

- no bonding or mechanical clamping of core elements is required, no gas defect caused by bonding material - remarkable decrease of rejects of castings;

- economy of sand and light weight of cores thanks to rationally arranged hollows inside cores without decreasing core strength, which remarkably enhances gas relieving effect at the time of molten metal pouring;

- higher productivity due to possibility of maximum automatization.

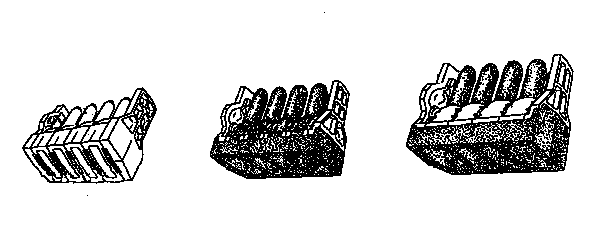

(1) Slab cores are set into the core box before blowing.

(2) A loading manipulator sets the slab cores into core box.

(3) The slab cores are firmly secured in the core box.
The core box is then closed and sand is blown.

(4) After completion of sand blowing, a single piece core containing the slab cores is pushed up out of the core box for removal by unloader.

THE SETSUGO SYSTEM guarantees dimensionally accurate bore pitches and precision positioning of cylinder block cores.

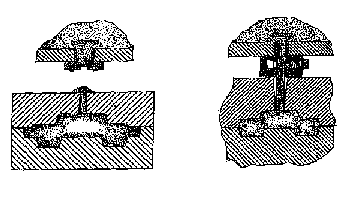

2. BLOW CHIP-LESS (CANDLE-LESS) TECHNOLOGY for shell core machines:

On shell core making machines, especially those for horizontally parted core-box, blow chips (or candles) are formed on made cores and excess sand remains around blow holes on the core box. Blow chips must be broken off either manually or mechanically and excess sand must be scraped off from the top surface of core box by automatic mechanical scraper. According to our analysis, sand loss comes up to 35-40 gm per one blow and one blow hole ( or 20-25 gm in case non-cured sand is recycled). Sand loss comes up at least to 100 kg in average per one machine in a day.
This caused not only waste of natural resource, but following problems:

- sand scattering inside and around machines followed by annoying cleaning work;

- molding defects of cores and disorder of machines caused by broken particles of blow chips or excess sand dropping into core-box cavities and machines;

-hampering to full automatic, no-man operation of machines and increased hazards for maintenance man due to frequent access to machines.

Naniwa paid attention to these points from early years and successfully solved them by improving design of blow nozzles. Several unique designs of blow nozzles were patented by the company.


NANIWA offers the complete package system consisting of core making machines and core box to fully meet specific customers' requirements.
NANIWA Core Making System produces top quality cores, based on the proven core making technology.

Original spare parts for core box are standardized for easy replacement.
Core boxes are designed and manufactured accurately to approved drawings, and trial operation of core making is conducted before shipment for a package order.
